- FILTER CARTRIDGES AND HOUSINGS
| Materials | |
|---|---|
| Filter Media | Poly Propylene |
| Core | Poly Propylene |
| End Caps | Poly Propylene |
| "O"-ring / Gasket | None |
| Retention Rating | |
| 1 um, 5 um | |
| Surface Area | |
| Standard (OD 61 mm) | ≥ 0.52 ft2 per 10" cartridge length |
| Jumbo (OD 110 mm) | ≥ 0.94 ft2 per 10" cartridge length |
| Maximum Operating Conditions | |
| Recommended change-out differential pressure* | 0.14 MPa (1.4 bar; 20.3 psid) @ 21°C (69.8°F) |
| Maximum operating temperature | 70°C (158°F ) [Polypropylene with Polypropylene] |
| Dimensions (Nominal) | |
| Length | 10", 20", 30", 40" |
| Standard OD/ID | 61 ± 0.5 / 27.5 ± 0.5 mm |
| Jumbo OD/ID | 110 ± 0.5 / 27.5 ± 0.5 mm |

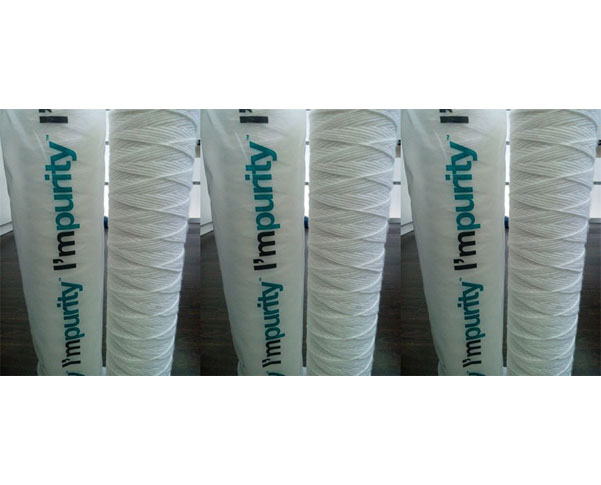

GOPANI STRING WOUND FILTER CARTRIDGE
Gopani’s Clarywound filter cartridge comes with higher dirt holding capacity and designed for filtration excellence. The string wound cartridge filter variant is engineered to perfection using the CNC machining process to construct a gradient depth filter that filters better, lasts longer and gives a consistent performance.
Featured and Benefits:
- High precision cartridge filter manufactured using best quality polypropylene yarn and core
- True gradient density achieved as a result of modern manufacturing processes
- Efficient filtration and high dirt holding capacity
- Promises optimum performance for downstream equipment protection.
- Optimized production to achieve accurate micron ratings from 0.5 to 150
Certifications:
The P1, P5, P1-20, and P5-20 is Tested and Certified by NSF International to NSF/ANSI Standard 42 for material requirements only.
PENTAIR SS316L CARTRIDGE HOUSING
Filtration & Separation solutions from Pentair Industrial Filtration are designed using advance technology and customized solutions to complement your broad range of applications.
Features:
- Designed for ease in Handling, Change-over & Use
- Mirror polished or sand blast external surface
- Accommodates 10 to 40 inch cartridges with various end caps
- Construction in SS 316L
- Drain & Vent port Available

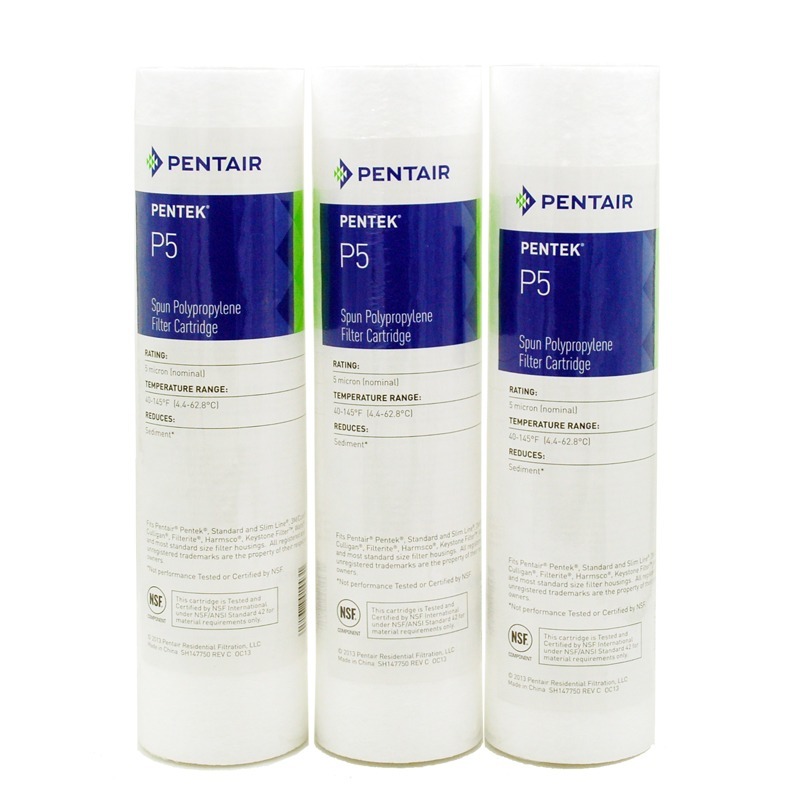

PENTAIR JUMBO FILTER CARTRIDGES
DGD Series cartridges are manufactured from 100% pure polypropylene and are sized for use in our Big Blue® filter housings.
DGD Series cartridges are designed for purity and will not impart taste, odor or color to the liquid being filtered. Additionally, the polypropylene construction provides superior chemical resistance and is not prone to bacterial attack.
The DGD Series’ advanced design combines selective final filtration with appropriate pre-filtration to achieve up to three times the dirt-holding capacity of similar size sediment cartridges and even greater capacity than standard spun or string-wound cartridges. This performance enhancement is achieved by combining two separate gradient layers in one filter.
The larger diameter of the pre-filter reduces the particle load to the post filter, allowing it to operate at higher velocities. The effective filter depth is increased to a full 233% of standard spun-polypropylene or string-wound filters. This increased depth provides for very high particulate reduction efficiencies and added loading capacity.
The unique design and performance characteristics of the DGD Series cartridges make them an excellent choice for all residential, rural, municipal and commercial applications.
Featured & Benefits
- Manufactured from pure 100% polypropylene
- Designed for purity and chemical compatibility
- Spun fibers form a gradient density from outer to inner surfaces
- Nominal 1, 5, 25-micron ratings
- Lengths: 10″, 20″
Certifications:
Tested and Certified by NSF International to NSF/ANSI Standard 42 for material requirements only.

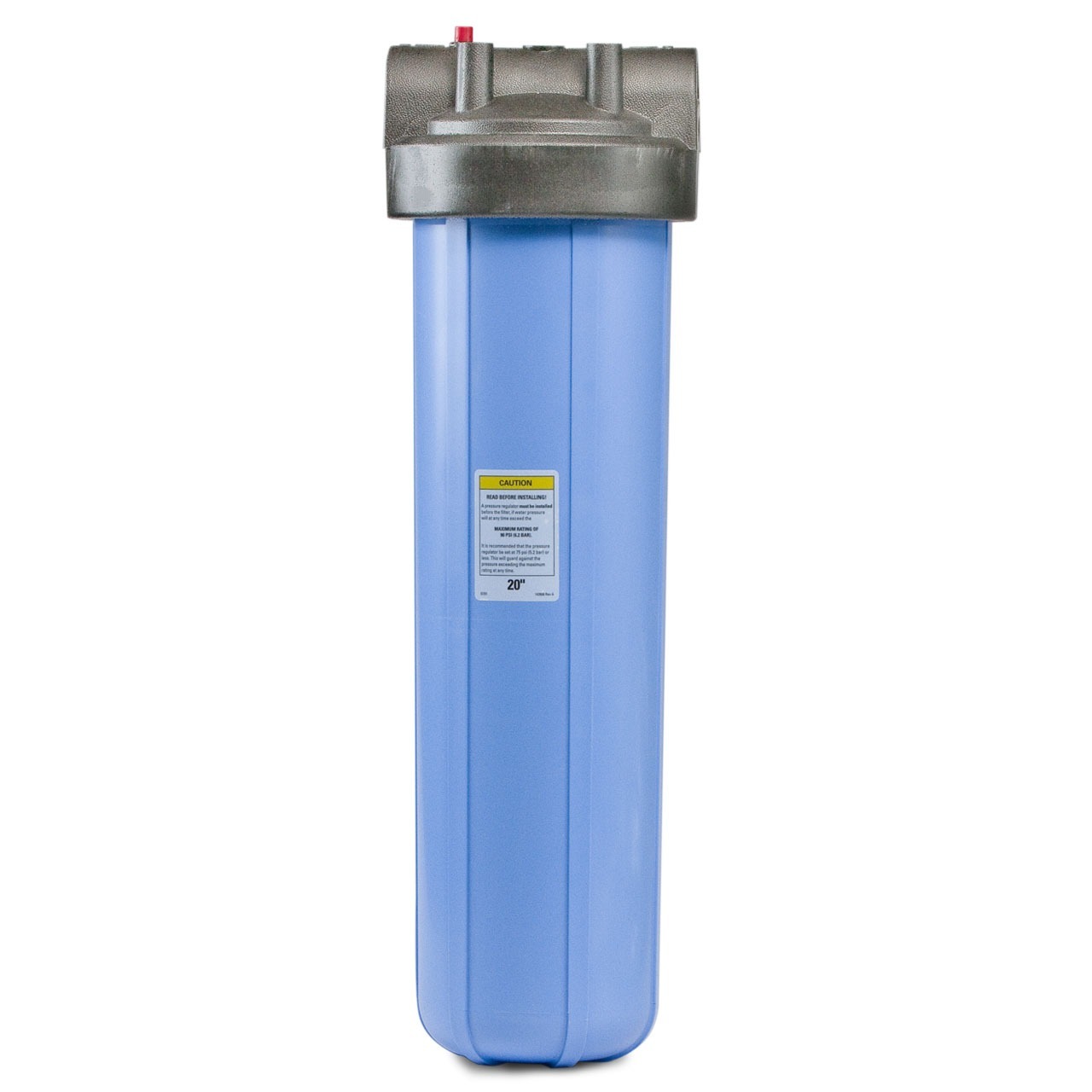

GOPANI JUMBO HOUSING
Produced from finest quality virgin polypropylene, Plastofilt CF are industrial grade housings. They deliver consistent performance and exhibit good atmospheric resistance. Plastofilt CF is available for both standard diameter cartridge filters and jumbo cartridge filters. Though smaller than stainless steel housings Plastofilt CF can process high flow rates up to 8 m3/hr with minimum pressure drop. They go through a series of inspection and tests before getting shipped.
Featured & Benefits
- Polypropylene material for wide chemical compatibility.
- Molded construction for product consistency
- Robust knife edge design ensures consistent cartridge sealing.
- High pressure retention capacity.
- Various connections for different requirement.
- Air release mechanism.
- Easier cartridge change out.
- Reduced Footprint.
Certifications:
Tested and Certified by NSF International to NSF/ANSI Standard 42 for material and structural integrity requirements.

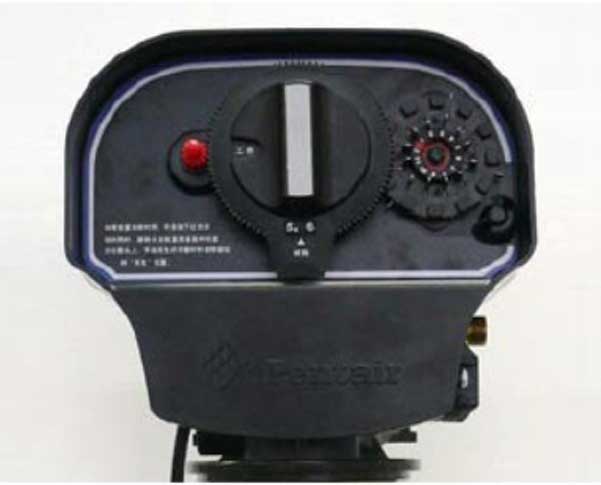

SOFTENER
| Materials | |
|---|---|
| Housing Sump / Top | PolyPropylene |
| Vent | Polypropylene with Stainless Steel Spring and Screw |
| "O"-ring / Gasket | Silicone |
| Suitable Cartridge | |
| Length | 20" |
| Diameter | 4.5" |
| End Connection | DOE |
| Connection Type | Jumbo (for 4.5") |
| Connection Size (Jumbo) | 1.5" |
| Operating Conditions | |
| Maximum operating pressure | 0.8 MPa (8.0 bar; 113.7 esid) @ 21°C (69.8°F) |
| Operating temperature range | 4°C ( 39.2°F) to 70°C ( 158°F) |
| Flow Rates | |
| 20" Jumbo | upto 8 m3/hr |
PENTAIR AQUALINE FILTER CARTRIDGES
Compared to conventional cartridge filters, AquaLine saves money by lowering capital cost and operating costs. When comparing filters with the same efficiencies or Beta ratings, nothing outperforms the cost/performance value achieved with AquaLine. Whether it is for process water, waste water, food & beverage, pharmaceutical, or other fluids for pre-filtration, guard filtration or final filtration, AquaLine is the right choice.
About our cartridges:
- Made from high performance polypropylene media
- 75″pleated construction features 15 times more surface area
- Extended surface area provides long life & fewer change-outs
- Outside-in design for high flows at low differential pressures
| Performance of AquaLine Filter Cartridges 60inch | Performance of AquaLine Filter Cartridges 40inch | |||
| Product / Filter | AquaLine | Product / Filter | AquaLine | |
| Material of Filter | Poly Propylene (Pleated) | Material of Filter | Poly Propylene (Pleated) | |
| Model | ALN05-60B | Model | ALN05-40B | |
| Diameter of Filter | 6.8 inch (172.72mm) | Diameter of Filter | 6.8 inch (172.72mm) | |
| Length of Filter | 60 inch (1524mm) | Length of Filter | 40 inch | |
| Micron Rating | 5 micron Nominal | Micron Rating | 5 micron Nominal | |
| Flow Path | Outside to Inside | Flow Path | Outside to Inside | |
| Installation | Horizontal | Installation | Horizontal | |
| Floor Space | None. Can be placed below the membrane housing | Floor Space | None. Can be placed below the membrane housing | |
| Inlet Port Size | 3 inches (Victaulic grooved) | Inlet Port Size | 3 inches (Victaulic grooved) | |
| Outlet Port Size | 3 inches (Victaulic grooved) | Outlet Port Size | 3 inches (Victaulic grooved) | |
| Drain Port Size | 1 inch FNPT | Drain Port Size | 1 inch FNPT | |
| Flow Rate, USGPM | 200 to 250 us gpm | Flow Rate, USGPM | 150 us gpm | |
| Flow Rate, m3/h | 45 to 57 m3/h | Flow Rate, m3/h | 33 m3/h | |
| Number of filters for 45m3/h | 1 number of ALN05 | Number of filters for 30m3/h | 1 number of ALN05-40″ | |
| Number of filters | 1 | Number of filters | 1 | |
| Surface area (m2) | 11.1 | Surface area (m2) | 7.4 | |
| 1 AquaLine is equivalent to | 11.1 | 1 AquaLine is equivalent to.. (m2) | 7.4 | |
| Duration of replacement | Once in 1.5 months | Duration of replacement | Once in 1.5 months | |
| Quantity Per replacement | 1 | Quantity Per replacement | 1 | |
| Quantity per 1.5 months (45days) | 1 | Quantity | ||
| Piping cost (Capital Cost) | Negligible, being one housing | per 1.5 months (45days) | 1 | |
| Manpower | 1 AquaLine Can be replaced in few minutes | Piping cost (Capital Cost) | Negligible, being one housing | |
| Maintenance | Negligible, being one housing | |||

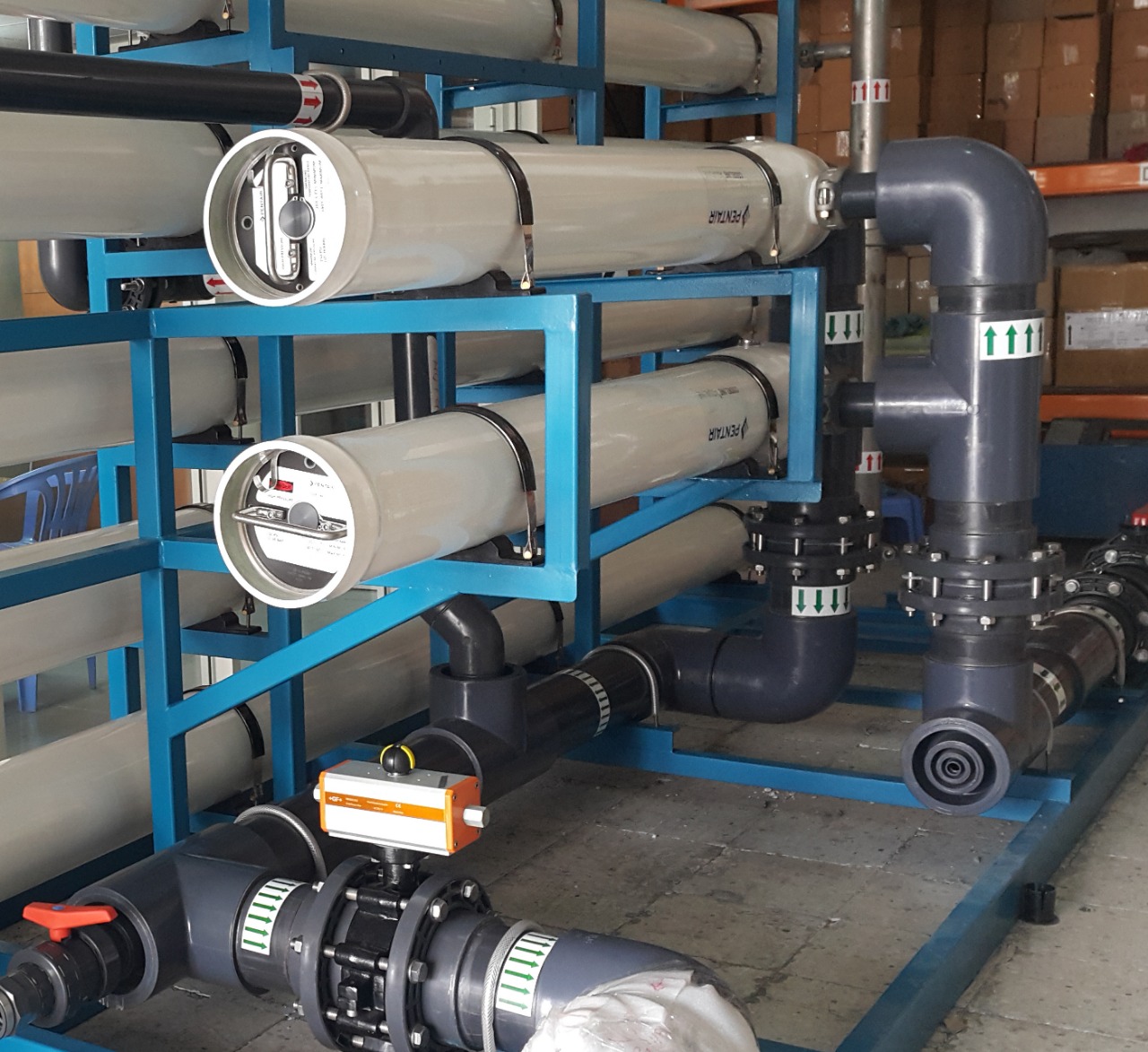

PENTAIR AQUALINE HOUSING
Pentair develops innovative solutions that meet both regulatory and financial KPIs. The Pentair scope consists of the filtration solutions with AquaLine housings and cartridges.
About our housings:
- Rugged 8″ FRP shell complies with ASME-X
- Qualification pressure = 6X operating pressure
- Lightweight construction for easy handling
- Can be installed vertically or horizontally, as convenient
| Performance of AquaLine Filter Housings | |
|---|---|
| Material of Housing | FRP/GRP |
| Model | 80CF15-40″ |
| Diameter of Housing | 8 inch |
| Length of Housing | 40 inch |
| Pressure rating | 150 psi |
| Qualification Pressure | 900 psi |
| Installation | Horizontal |
| Floor Space | None. Can be placed below the membrane housing |
| Inlet Port Size | 3 inches (Victaulic grooved) |
| Outlet Port Size | 3 inches (Victaulic grooved) |
| Drain Port Size | 1.0 inch FNPT |
| Flow Rate, USGPM | 150 us gpm |
| Flow Rate, m3/h | 33 |
| Quantity for 30m3/h | 1 |

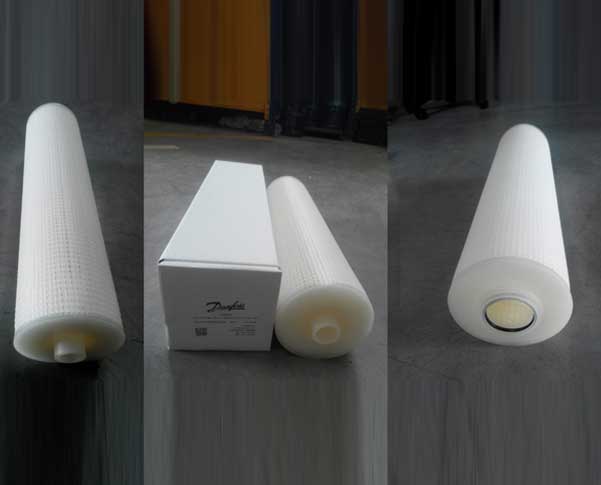

DANFOSS FILTER CARTRIDGES
The Danfoss filter product range includes different types of main filter elements, all fulfilling the minimum requirement of 10 µ absolute with a Beta value > 5000.
One filter element end has an O-ring seal, and the other end has a closed cap, which has a different design depending on the specific filter type.
| Filter element | Type 7 |
|---|---|
| Element length | 20” (508 mm) |
| Filtration level (Beta > 5000) | 10 μ abs |
| Max flow (l/min) | 170 |
| Max flow (m3/h) | 10.2 |
| Max flow (gpm) | 44.9 |
| Element inner diameter | 1.8” (46 mm) |
| Element outer diameter | 4.5” (115 mm) |
| Effective surface | 26 sq.ft. (2.45 m2) |
| Max differential pressure at 75°F (24°C) | 43.5 psi (3.0 bar) |
| Max operating temperature | 122°F (50°C) |
| Materials | Polypropylene |
| Code number | 180Z0285 |

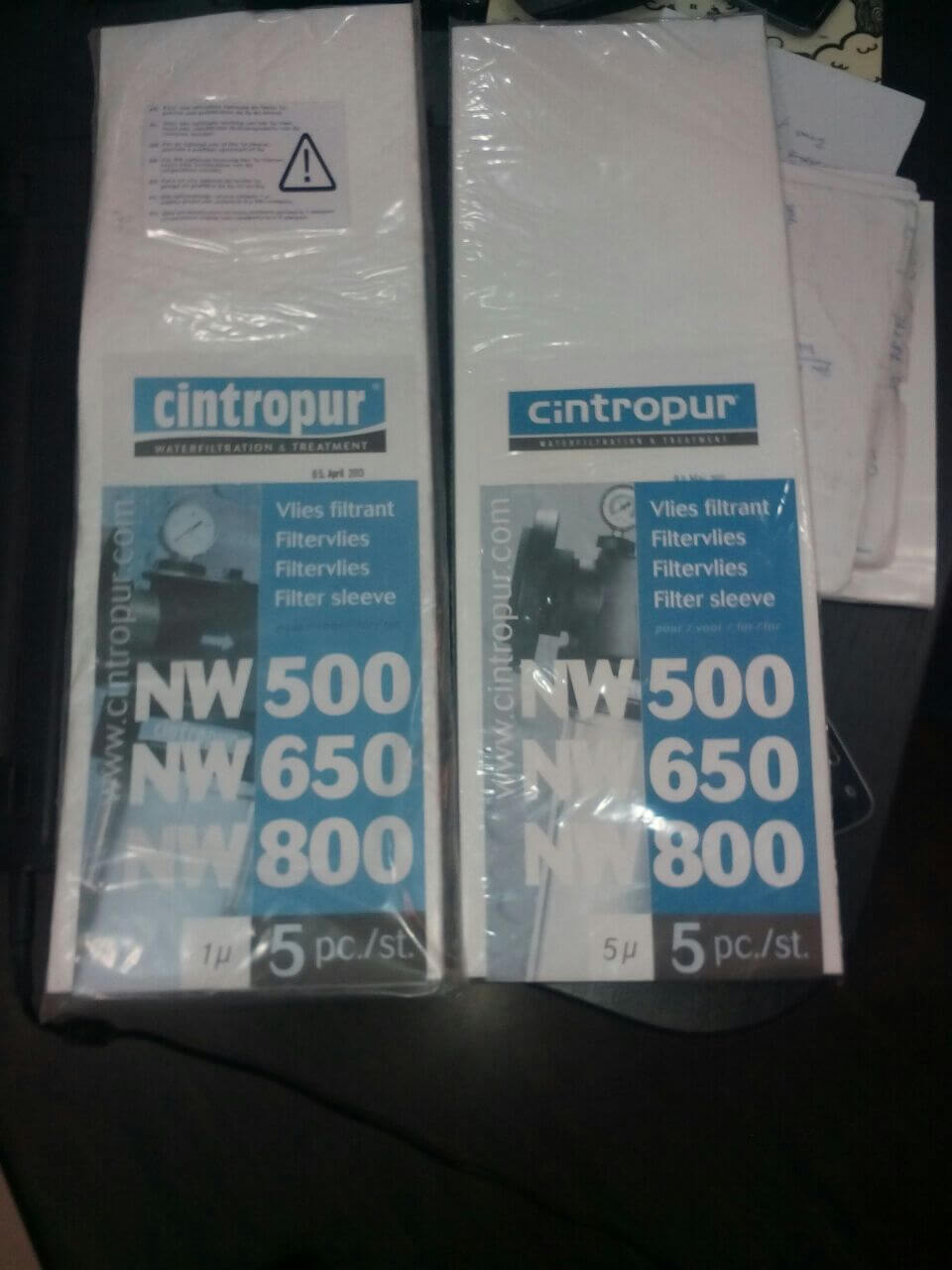

CINTROPUR FILTER CARTRIDGES
Made entirely from first quality synthetic material, CINTROPUR filters are perfectly suitable for food products and drinking water. The CINTROPUR vane transforms the liquid flow into a centrifugal spin by throwing the larger particles down into the lower bowl, according to the chosen filter sleeve micron-size.

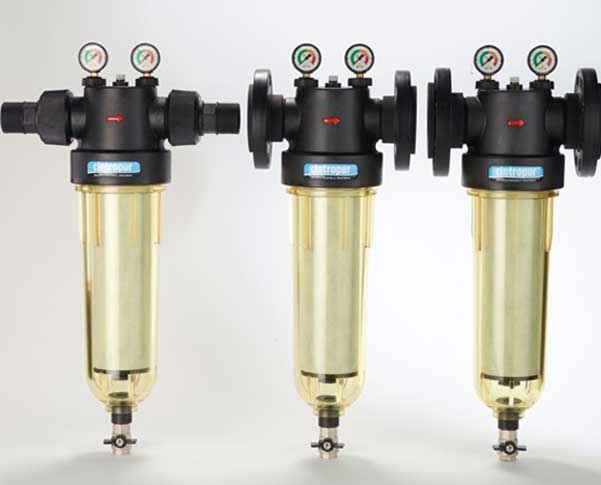

CINTROPUR HOUSING
The brand CINTROPUR® offers a wide range of mechanical filters designed for filtering out clear and slightly contaminated water. The industrial range features 3 filters and is capable of handling flow rates from 20 to 30 m³/h.
- NW 500 : 20 m3/h (2″)
- NW 650 : 25 m3/h (2 ½”)
- NW 800 : 30 m3/h (3″)
- Nominal 1, 5, 25-micron ratings
- Lengths: 10″, 20″
Basic principle: filtering out solid particles (earth, sand, rust, etc,) suspended in the water.
Main advantages:
- double stage of filtration (centrifugal flow thanks to the vane + filtering sleeve)
- filtration practically without accumulation
- low pressure drop
- high and constant flow rate
- large choice of filtering fineness ranging from 5 to 300 microns
- 100% synthetic filter and high resistance
- sealing guaranteed thanks to the O-ring system
- fast and easy rinsing thanks to the drain cock
- long lifetime and uninterrupted spare parts supply
- reduced need for maintenance
