- VICTAULIC COUPLINGS AND FITTINGS

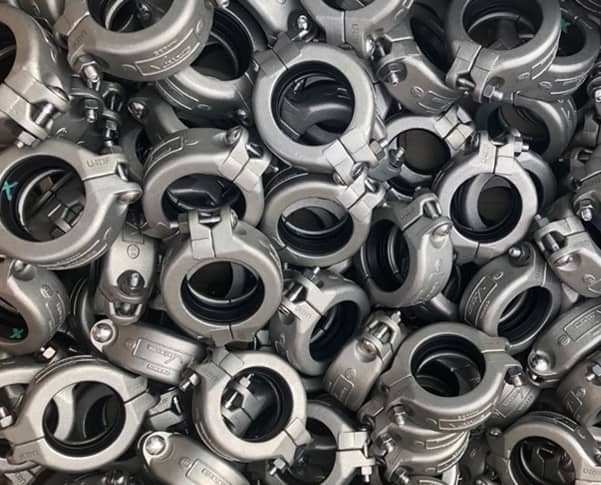

VICTAULIC COUPLINGS
From small diameter to large diameter, PVC Reusable and numerous other options, our pipe joining product solutions are the choice of discerning engineers, contractors and site owners.
Rigid couplings have a unique, patented angled pad design which constricts the housing keys into the groove around the full circumference to create a rigid joint. The housings slide on the angled pads rather than mating squarely. This sliding movement also forces the key sections into opposed contact on the inside and the outside groove edges, which locks the coupling onto the pipe ends and creates a rigid connection.
These rigid couplings provide a rigid joint allowing no expansion/contraction or linear movement.
The couplings will position the pipe ends so that there is a fixed pipe end separation that may be considered during design and installation (see chart below).
Rigid couplings create a rigid joint, useful for risers, mechanical rooms and other areas where flexibility is not desired. QuickVic Style 107H, Zero-Flex Style 07 and Style W07 AGS couplings are designed to provide rigidity to permit hanging to ASME B31.1 Power Piping Code, ASME B31.9 Building Services Piping Code and NFPA 13 Sprinkler Systems.
VICTAULIC FITTINGS
With hundreds of fittings and a range of adapters in copper and stainless steel, Victaulic specializes in delivering product solutions that not only meet but exceed customers’ demands, solving even the most daunting coupling challenges.
Standard fitting pressure ratings conform to ratings of installed coupling. All fittings supplied with grooves or shoulders for fast installation. Groove design permits flexibility for easy alignment (these fittings are not intended for use with Victaulic couplings for plain end pipe – refer to Publication 14.04 for fittings available for plain end pipe). Painted orange enamel with optional galvanized finish. When connecting wafer or lug-type butterfly valves directly to Victaulic fittings with Style 741 or 743 Vic-Flange adapters, check disk clearance dimensions with I.D. dimension of fitting
VICTAULIC VALVES
Our hydraulic control valves are available in level-control, pressure-reducing and pressure-release configurations to be paired with a variety of piping material and joining systems.
Designed for a wide variety of applications, Victaulic valves are engineered and manufactured for dependable, trouble-free performance, superior flow control and durable, long-lasting reliability.
Victaulic offers a full complement of butterfly, check, ball, triple service, hydronic balancing and plug valves in a variety of wear-resistant materials and coatings to satisfy your specific piping application requirements.
